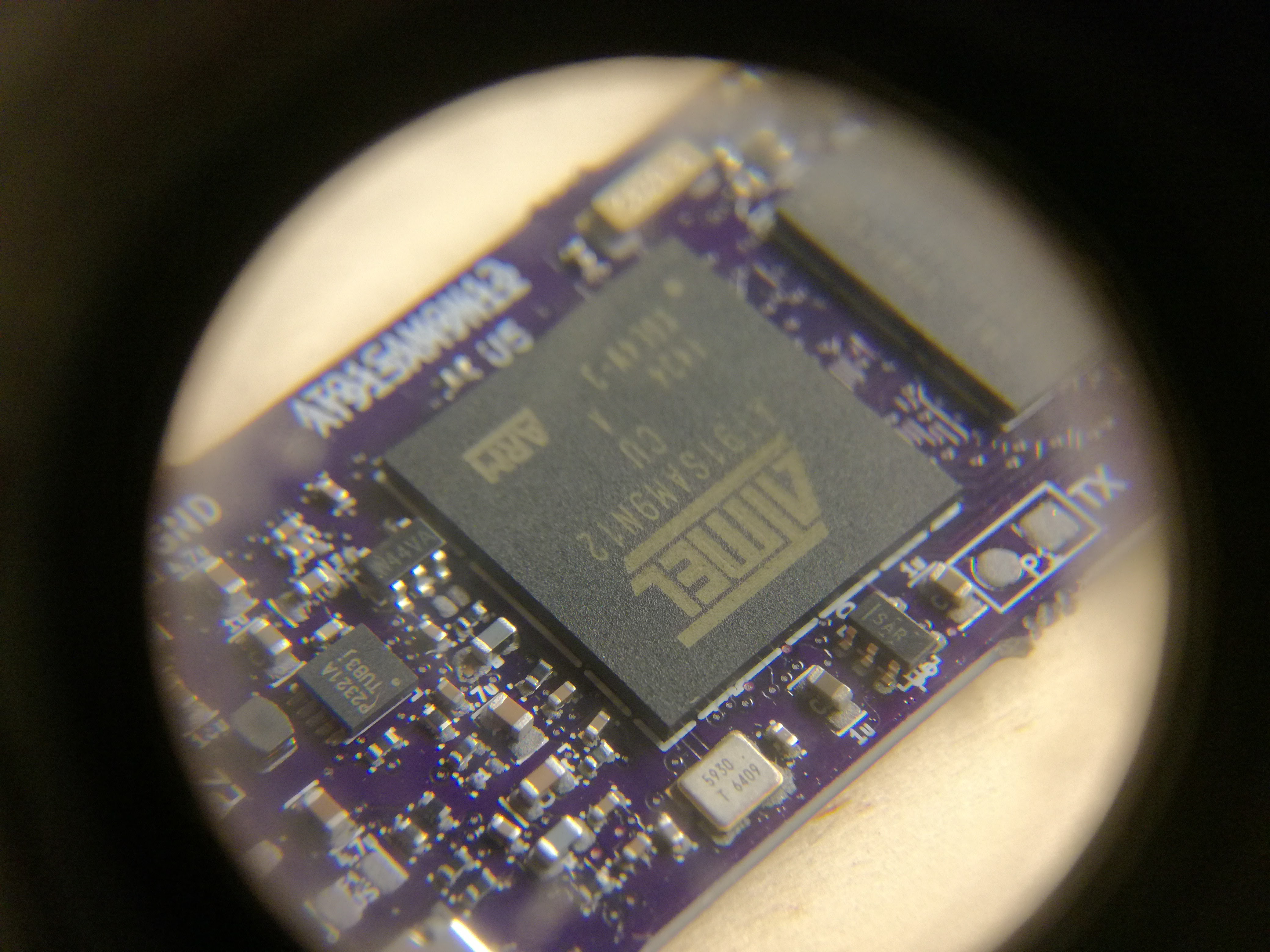

Component placement detail. When placing a BGAs, you don’t have much to rely upon but the component frame drawn on the silkscreen. And if you make an error of more than 0.4 mm than you can offset a whole component by one row thus ruining your day. If you’re not sure in your hands precision, take the component with a tweezers, close your eyes before you drop it and hope for the best. Continue reading dav
